MAPLE WIRELESS 5.8GHz SMA Antenna

Description

5.8GHz Circular Polarized Omnidirectional FPV Antenna – SMA Male

This compact 5.8GHz circular polarized antenna provides reliable omnidirectional signal coverage for FPV video systems. Its circular polarization helps reduce multipath interference, making it suitable for FPV drones, video transmitters, receivers and goggles equipped with a compatible SMA female connector.

Choose the same polarization as the other antennas in your FPV system for the best signal performance.

Polarization Options

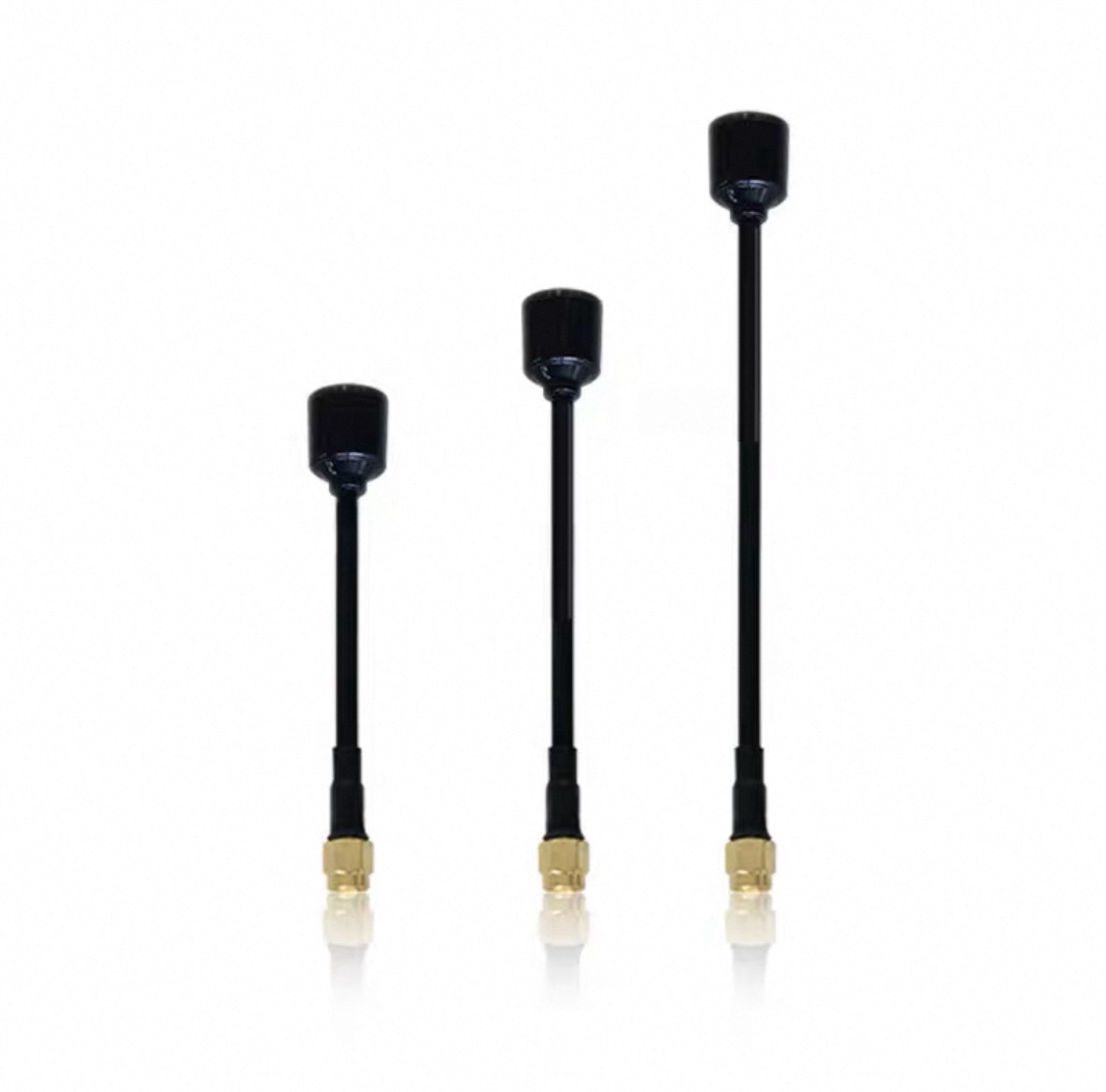

Black – RHCP (Right-Hand Circular Polarization)

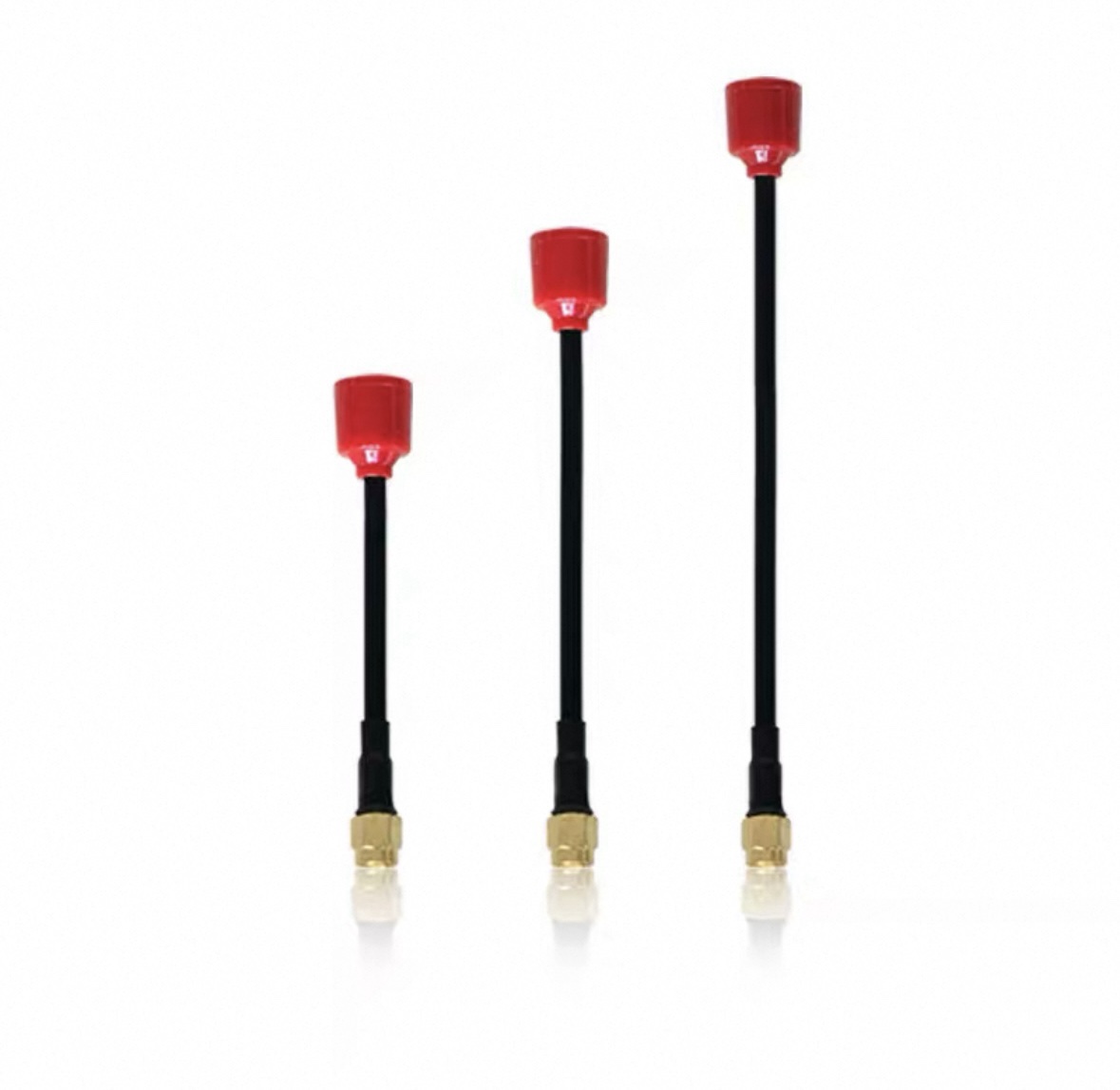

Red – LHCP (Left-Hand Circular Polarization)

Specifications

Specification

Details

Product Type

5.8GHz Circular Polarized Omnidirectional Antenna

Model – Black

MQJ-02-5.8R

Model – Red

MQJ-02-5.8L

Frequency Range

5.660–5.914GHz

Gain

2dBi

Connector

SMA Male (Center Pin)

Horizontal Beamwidth

360°

Vertical Beamwidth

95°

Antenna Head Size

13mm diameter × 15mm height

Black Version

RHCP

Red Version

LHCP

Compatibility Notice

This product is supplied with an SMA male center-pin connector only. Please check your device’s connector and polarization before ordering. It is not compatible with RP-SMA connectors.
